LS-Wing
lightshark
Led, LED Effects / Special Effects, LED Video Walls, Lighting, Lightshark Controllers, LS-Wing

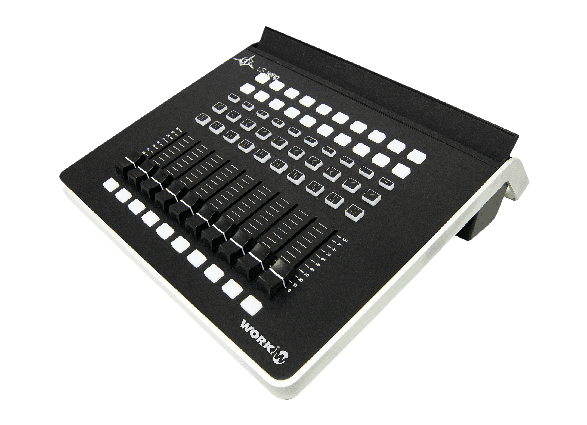

LS-Wing is an innovative hardware which offers several products in one: A Wing for LS-1 / LS -Core, an OSC/UDP hardware controller, a MIDI controller and a user programmable remote controller.
LS-Wing can send/receive OSC commands through ethernet from any software or hardware compatible with this protocol. In addition, it can send/receive UDP messages, making it compatible with any AV device or software on the market.
Technical Data
| Model | LS-Wing |
|---|---|
| Buttons | 20 executor, 10 selection, 20 Playback, 10 Flash, fully configurable |
| Faders | 10 faders fully configurable |
| I/O ports | 1xLamp port (XLR-3 5V) 2xDMX (XLR-5) 3xLAN (EtherCon®) 2xUSB-A (Data) + 1xUSB-A(only power 5V) 1xUSB-B 1xTrueOne® mains |
| Configuration interface | Via Built-in Webserver. Accesible through LAN connection |
| DMX Outputs | Built-in LAN to DMX ArtNET, sACN node with 2 universe outputs |
| Lamp connector DC Voltage | 5V |
| USB POWER connector max. current | 2A |
| USB Data connectors max Current | 500mA each |
| name: "Dimmensions", | 325 x 100 x 330 mm |
| Weight | 2,7 kg |
| Power supply | 90-230V 50/60Hz TrueOne® connector |
