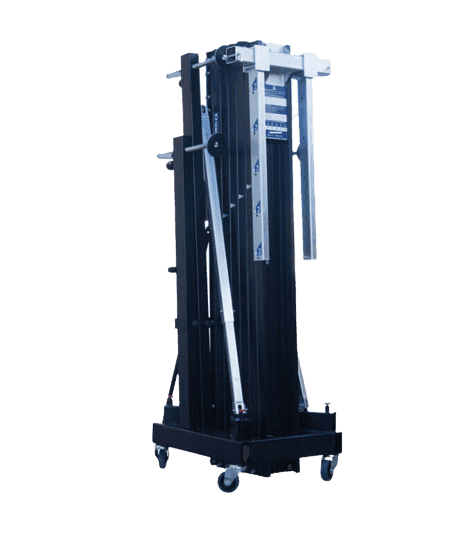

WTS 1206. The WTS Series means a change of concept within the front load towers, as it introduces the new Structural Mode. This Structural Mode does not use the winch to lift the load, but involves lifting the load with the help of a manual or electric hoist. That is, the tower is used as a structure that is all locked to the required working height.
Once the tower is raised to this desired height, the load must be raised with the hoist. The Structural Mode performs improved loading capacities. Furthermore, the WTS Series incorporates the innovative Dynamic Overlap system.
Features:
- Modes of operation: Mechanism Mode and Structural Mode.
- Four extensible profiles made of extruded aluminium.
- Reinforcing bars on the back and front of the lifter for additional reinforcement.
- Castors at the base of the lifter.
- Dynamic Overlap system.
- Available color: Black.
- Compatible accessories: AWS 502, AWS 301, AWS 501.
Technical Data
| Model | WTS 1206 |
|---|---|
| Folded height | 2,00(m) - 6,56(ft) |
| Base width | 0,585(m) - 1,92(ft) |
| Base length | 0,58(m) - 1,90(ft) |
| Maximum Height | 6,00(m) - 19,69(ft) |
| Minimum fork height | 0,88(m) - 2,88 (ft) |
| Unfolded diameter | 3,40(m) - 11,15(ft) |
| Frontal side width | 2,15(m) - 7,05(ft) |
| Rear side width | 2,55(m) - 8,37(ft) |
| Fork length | 0,86(m) - 2,82(ft) |
| Number of profiles | 4 |
| Minimum load capacity | 25(Kg) - 55,12(Lb) |
| Max.load as mechanism | 550(Kg) - 1212,54(Lb) |
| Max. load as structure | 1200(Kg) - 2645,55(Lb) |
| Net weight | 244(Kg) - 537,92(Lb) |
| Winch | 1200(Kg) - 2645,5(Lb) |
| Cable diameter | 6(mm2) |
| Noise emissions | 73(dB) |
